Paige 454100FE 14AWG-2C Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 14 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .013”
 2.3 Color code: Black & White

 3. Assembly

 3.1 Lay Length: 4.50” LHL (2.67 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 16 AWG
 5.3 Construction: 19 Strand

 6. Jacket

 6.1 Material: Low Smoke Zero Halogen Polyolefin
 6.2 Wall Thickness: .021”
 6.3 OD: .240” nom.
 6.4 Color: Gray
 6.5 Ripcord: Yes
 6.6 Markings: PAIGE #454100FE 14AWG 2C SHIELDED 75oC 300V LSZH ROHS
       COMPLIANT MADE IN USA (Ascending / Descending footage markings)

 7. Electricals

 7.1 Impedance: 41 ohms +/- 10%
 7.2 Capacitance: 37 pF/ft. +/- 10%
 7.3 DC Resistance: 2.63 ohms/M ft.@ 20oC
 7.4 Voltage: 300 Volt max.

 Scope

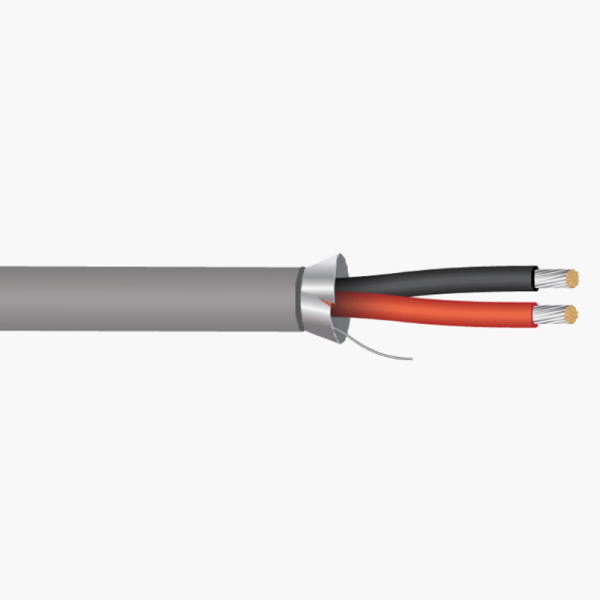

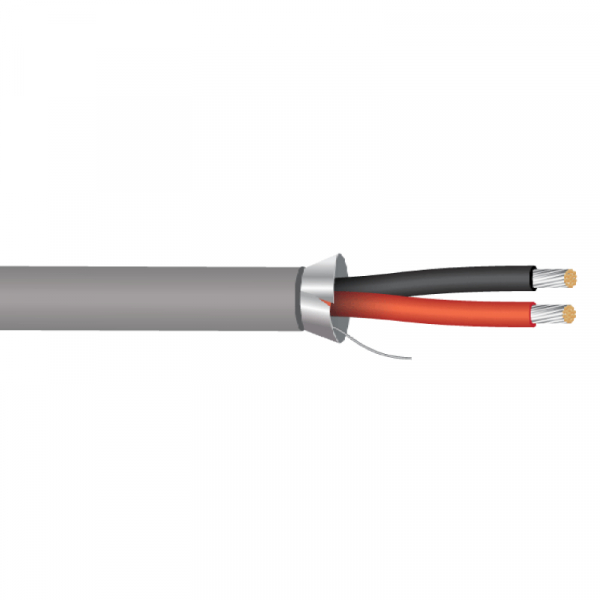

 This cable consists of 2 conductors 14 AWG stranded bare copper; color-coded Polyethylene insulation; overall shield
 with drain wire; overall low smoke zero halogen Polyolefin jacket.
 RoHS III & REACH Compliant

 Application

 Communication cable
