Paige 45188CSNH 18AWG-8C Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .010”
 2.3 Color code:
            1-Black 5-Brown
            2-Red 6-Blue
            3-White 7-Orange
            4-Green 8-Yellow

 3. Assembly

 3.1 Lay Length: 3.25” LHL (3.69 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: Low Smoke Zero Halogen Polyolefin
 6.2 Wall Thickness: .020”
 6.3 OD: .257” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #45188CSNH 18AWG 8C SHIELDED 75’C 300V LSZH ROHS II
       COMPLIANT MADE IN USA (Ascending/Descending footage markings)

 7. Electrical Properties

 7.1 DC Resistance: 6.60 ohms/M ft. @ 20oC
 7.2 Capacitance: 18 pF/ft. +/- 10%
 7.3 Impedance: 59 ohms +/- 10%
 7.4 Voltage: 300 Volt max.

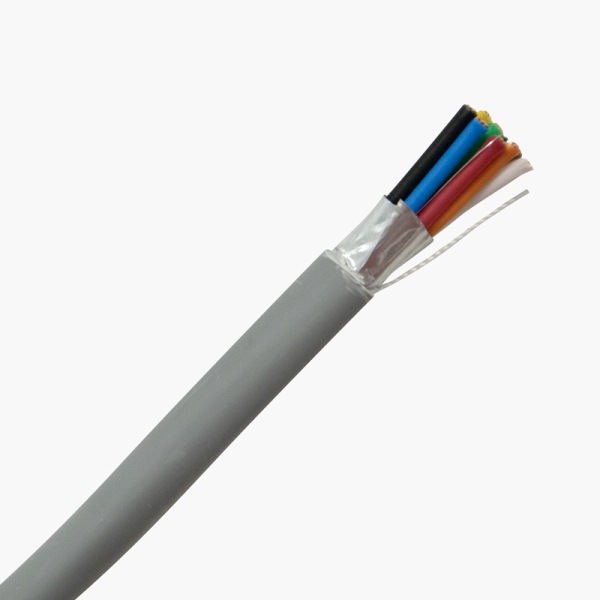

 Scope

 This cable consists of 8 conductors 18 AWG stranded bare copper; color-coded Polyethylene insulation; overall

 aluminum mylar shield with drain wire; overall low smoke zero halogen Polyolefin jacket.
 RoHS II & REACH Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
