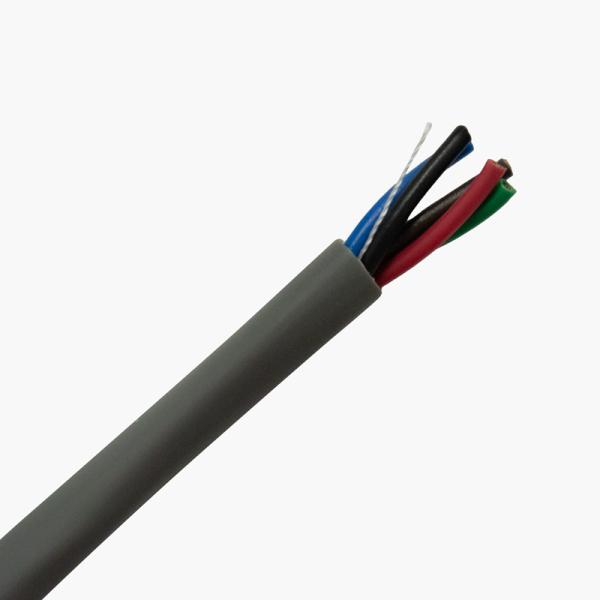

Paige 45166CPVC 16AWG-6C Stranded, Unshielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 16 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .007”
 2.3 Color code:
              1-Black
              2-Red
              3-White
              4-Green
              5-Brown
              6-Blue

 3. Assembly

 3.1 Lay Length: 3.25” LHL nom.(3.69 tw/ft)

 4. Jacket

 4.1 Material: PVC – Pressure Extruded
 4.2 Wall Thickness: .015”
 4.3 OD: .246” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE 45166CPVC E191596 16AWG 6C (UL) CMR C(UL)US OR (UL)
       CL3R OR (UL) FPLR 75’C FT-4 ROHS II COMPLIANT REACH MADE IN USA
       (Ascending/Descending footage markings)

 5. Electrical Properties

 5.1 Voltage: 300 Volt RMS
 5.2 Impedance: 38 ohms
 5.3 Capacitance: 32.38 pF/ft.
 5.4 DC Resistance: 4.15 Ohms/M ft.

Scope:

 This cable consists of 6 conductors 16 AWG stranded bare copper; color-coded PVC insulation;
 overall PVC jacket.
 ROHS II & Reach Compliant
