CABLE CONSTRUCTION
1. Conductors
1.1 Material: Bare Copper
1.2 Size: 16 AWG
1.3 Stranding: 19 Strand
2. Insulation
2.1 Material: Polyethylene
2.2 Wall Thickness: .018”
2.3 Color Code: Black, Red, White
3. Shield
3.1 Material: Aluminum Mylar Tape
3.2 Coverage: 100% (Foil facing inside)
4. Drain Wire
4.1 Material: Tinned Copper
4.2 Size: 18 AWG
4.3 Stranding: 7 Strand (In contact with foil)
5. Jacket
5.1 Material: Low-Smoke Zero
5.2 Halogen Polyolefin
5.3 Wall Thickness: .028”
5.4 O.D.: .261” nom.
5.5 Ripcord: Yes
5.6 Surface Print: “PAIGE #45163S LSZH 16AWG 3C SHIELDED 75C
300V LSZH ROHS MADE IN USA” (Ascending/Descending footage markers)
5.7 Color: Gray
6. Electricals
6.1 Impedance: 60 ohms +/- 10% nom.
6.2 Capacitance: 25 pF/ft +/- 10% nom.
6.3 DC Resistance: 4.15 ohms/M ft. @ 20oC nom.

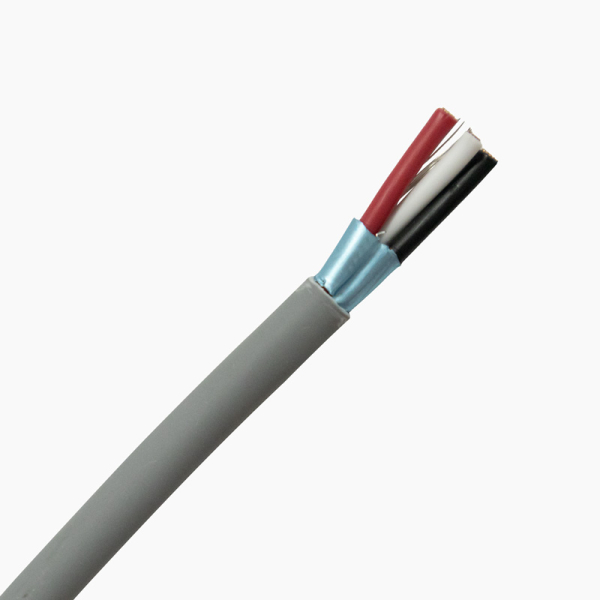

Type This cable is composed of 3 conductors 16 AWG stranded bare copper conductor insulated with Polyethylene insulation and tinned
cabled with an aluminum mylar tape shield and a stranded copper drain wire. A low-smoke Zero Halogen Polyolefin jacket completes the package.
Maximum operating voltage: 300V
Weight :
Dimetion :
Cable in one drum:
Pallet weight :
Total net weight in cluding both :
