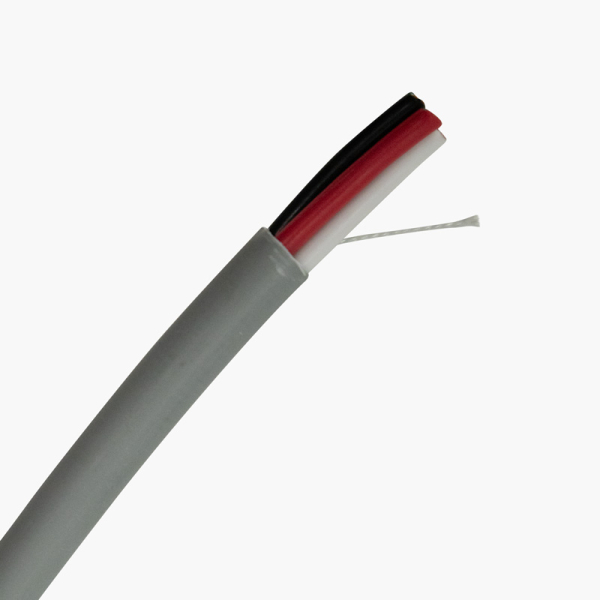

Paige 45143CULSZH 14AWG-3C Stranded, Unshielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 14 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polyolefin
 2.2 Wall Thickness: .011”
 2.3 Color code:
             1-Black
             2-White
             3-Red

 3. Assembly

 3.1 Lay Length: 4.00” LHL (3.00 tw/ft)

 4. Jacket

 4.1 Material: Low-Smoke Zero Halogen Polyolefin
 4.2 Wall Thickness: .017”
 4.3 OD: .240” nom.
 4.4 Color: Gray
 4.5 Ripcord under the jacket
 4.6 Markings: PAIGE #45143CULSZH 14AWG 3C 75’C 300V LSZH ROHS II COMPLIANT
       REACH MADE IN USA (Ascending/Descending footage markings)

5. Electricals

 5.1 Capacitance: 21.75 pF/ft. +/- 10%
 5.2 Impedance: 70 ohms +/- 10%
 5.3 DC Resistance: 2.63 ohms/M ft.@ 20DegC
 5.4 Voltage: 300 Volts max.

SCOPE:

 This cable consists of 3 conductors 14 AWG stranded bare copper; color-coded Polyolefin insulation;

 overall low-smoke zero halogen Polyolefin jacket.

 RoHS II & REACH Compliant
