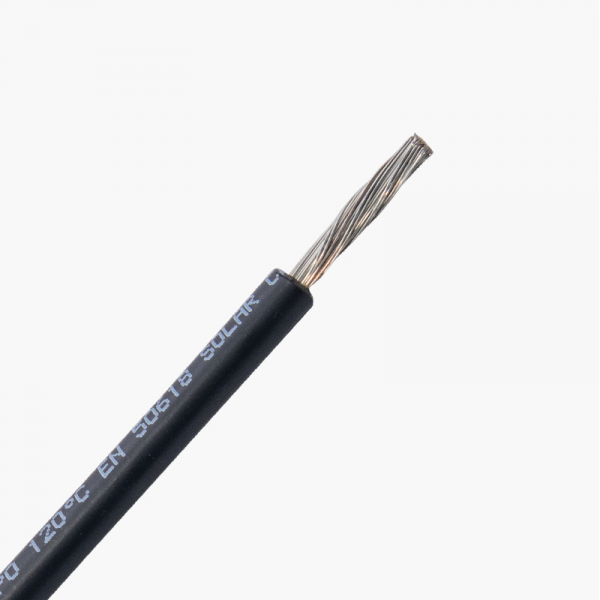

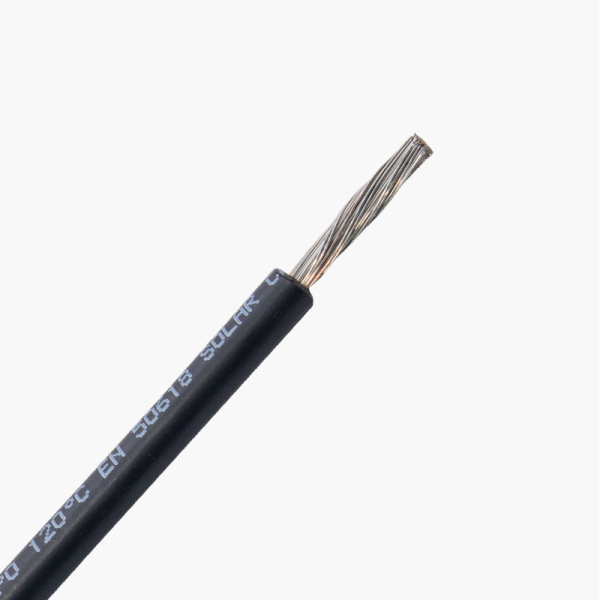

Siechem IC DI UV Resistant Weather Proof Tinned Copper Multi Stranded Solar Cable

 CABLE CONSTRUCTION

 Conductors

 Annealed Tinned Copper (APC Optional) according to IEC 60228, Class 5, or as per customer order.

 Insulation

 XLPO 120DegC (Color Red, Yellow, Blue, Black and Green)

 Jacket

 XLPO is Highly weather and UV-resistant (Colour Black)

 Test Voltage

 6500V AC

 Voltage Resistant Test

 EN 50395

 Related Voltage

 600/1000 V AC, 1800 V DC

 Short Circuit Temp

 +280DegC

 Max.Temperature at conductor

 120DegC (20,000h)

 Features:

 Resistance against UV, Water, Ozone, Fluids, Oil, Salt, and General Weathering.
 Electron beam cross-linked.
 Halogen-free, flame retardant, low smoke emission.
 Fire retardant to meet IEC 607541-1/EN 50268-2
 RoHS compliant as per EU norms.

 Applications:

 Solar cables are intended for use in photovoltaic power supply systems and similar applications as free hanging, movable, fixed installation, and buried in the ground in constructional covered systems.

 The cables can be used indoors, outdoors, in hazard explosion areas, in industry and agriculture

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
