       AC INSULATION TESTER

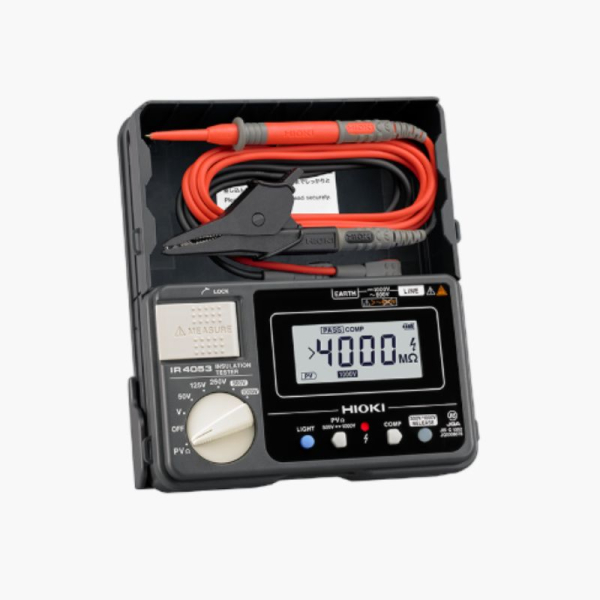

        The Hioki IR4053 is a digital insulation resistance tester for photovoltaic generation systems. Measure insulation resistance accurate and safely without being affected          by generated solar power and identify the value in just 4 seconds.

             Key Features

•   The IR4053, which was designed for PV, can accurately measure insulation resistance without being affected by the generally.
•   Normally, to accurately measure the insulation resistance of a generating PV, one needs to short the measured circuit. With the IR4053's PV                  measurement module of     circuiting is not necessary.
•   The IR4053 displays the measured value just 4 seconds after starting measurement. After the first display, the displayed value is updated each               second. Comfortably carry out swift measurements.


  Rated output voltage
   500 V DC - 1000 V DC

           DC voltage range
            4.2 V (0.001 V resolution) to 1000 V (1 V resolution), 4 ranges


            AC voltage range
            420 V (0.1 V resolution)/600 V (1 V resolution), 2 ranges, 50/60 Hz,

 Typical applications are:

Portable insulation resistance testers and megohmmeters are designed to help prevent hazards such as electric shock and short-circuits caused when the insulation in electrical devices, parts, and equipment used in industrial plants, buildings, and other settings degrades over long periods of use.
