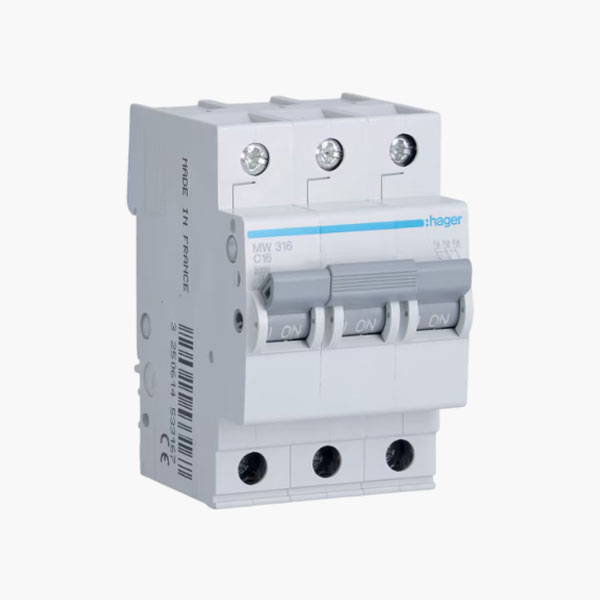

Hager MCB

  HAGER MCBs

   Characteristics

     Protection and control of circuits against overloads and short-circuits in electrical installations. Allows to isolate circuits.

   Technical Data

    - breaking capacity: 3000A (as per IEC 60898-1)
    - voltage: 230/400V AC
    - current: 6A to 40A
    - frequency: 50/60Hz
    - tripping curve:
         B curve: 3 to 5 In
         C curve: 5 to 10 In

   Technical Features

    - bi-connect (cable & busbar)
    - supply feed either top or bottom
    - will not accept auxiliaries
    - poles: 1P, 2P, 3P, 4P (protected poles)
    - climate sealed: T2
    - trip free mechanism

   Connection Capacity

    - flexible: up to 16 mm2
    - rigid: up to 25 mm2

They are primarily intended for general application.

 Typical applications are:

Protection and control of circuits against overloads and short-circuits in electrical installations. Allows to isolate circuits.
