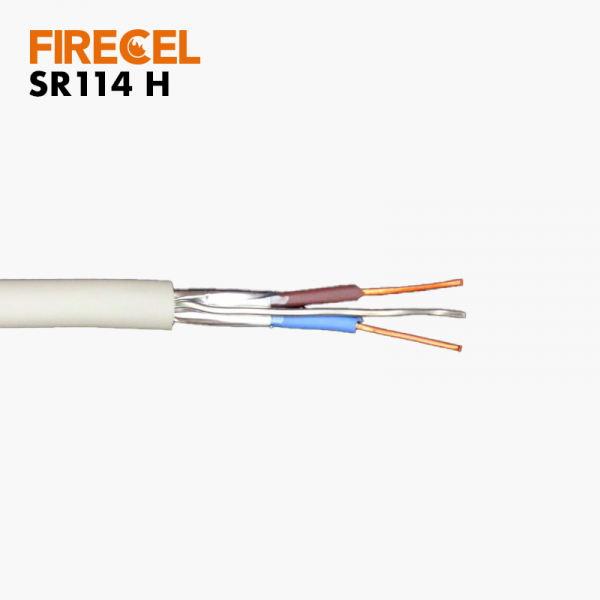

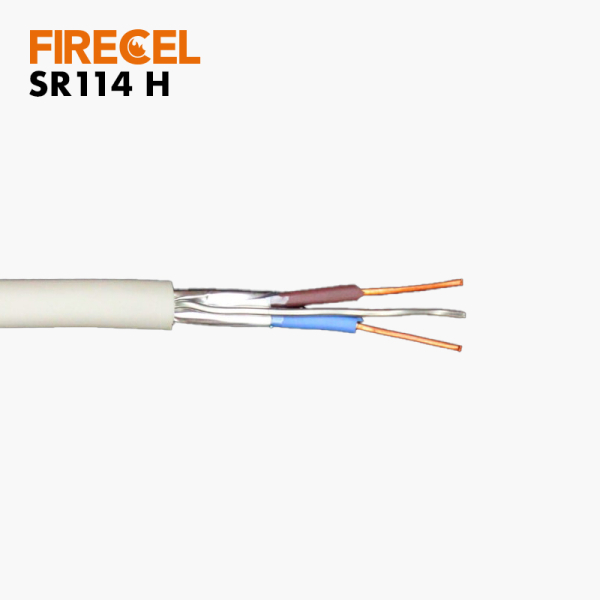

Firecel SR114H White - Fire Alarm Cable - LPCB and BASEC Approved

 CABLE CONSTRUCTION

 Conductors

 Plain annealed copper wire, solid class 1 or stranded class 2 according to EN 60228.

 Insulation

 High-performance fire-resistant silicone rubber type EI2 to BS EN 50363-1.

 Cabling

 Insulated cores are cabled together.

 Overall screen

 Aluminium/polyester tape.

 Drain wire

 Uninsulated tinned copper conductors of the same section and class as the insulated conductors in the 2,3 and 4-core cables.

 Drain wire of 0.5 mm2 tinned copper conductor is provided in cables with more than 4 conductors

 Outer sheath

 LSZH thermoplastic material type LTS3  according to BS 7655.
 Colour red or white (other colours on request)

 Colour code up to 4 Cores to HD

 2 cores:

 3 cores:

 4 cores:

 OPERATING TEMPERATURE
 -40DegC to +90DegC

 FIRECEL SR 114H are primarily intended for general application.

 Typical applications are:

 . BS 5839-1 for standard fire resistant cables in fire detection and fire alarm systems for building

 . BS 5839-8 for voice alarm systems

 . BS 5839-9 for emergency voice communication systems

 . BS 5266-1 for emergency lighting of premises (PH60)

 . BS 8519 for fire-resistant control cable systems for life safety and fire-fighting application - Category 1

 Weight :

 Dimension :

 Cable in one drum:

 Pallet weight :

 Total net weight including both :
