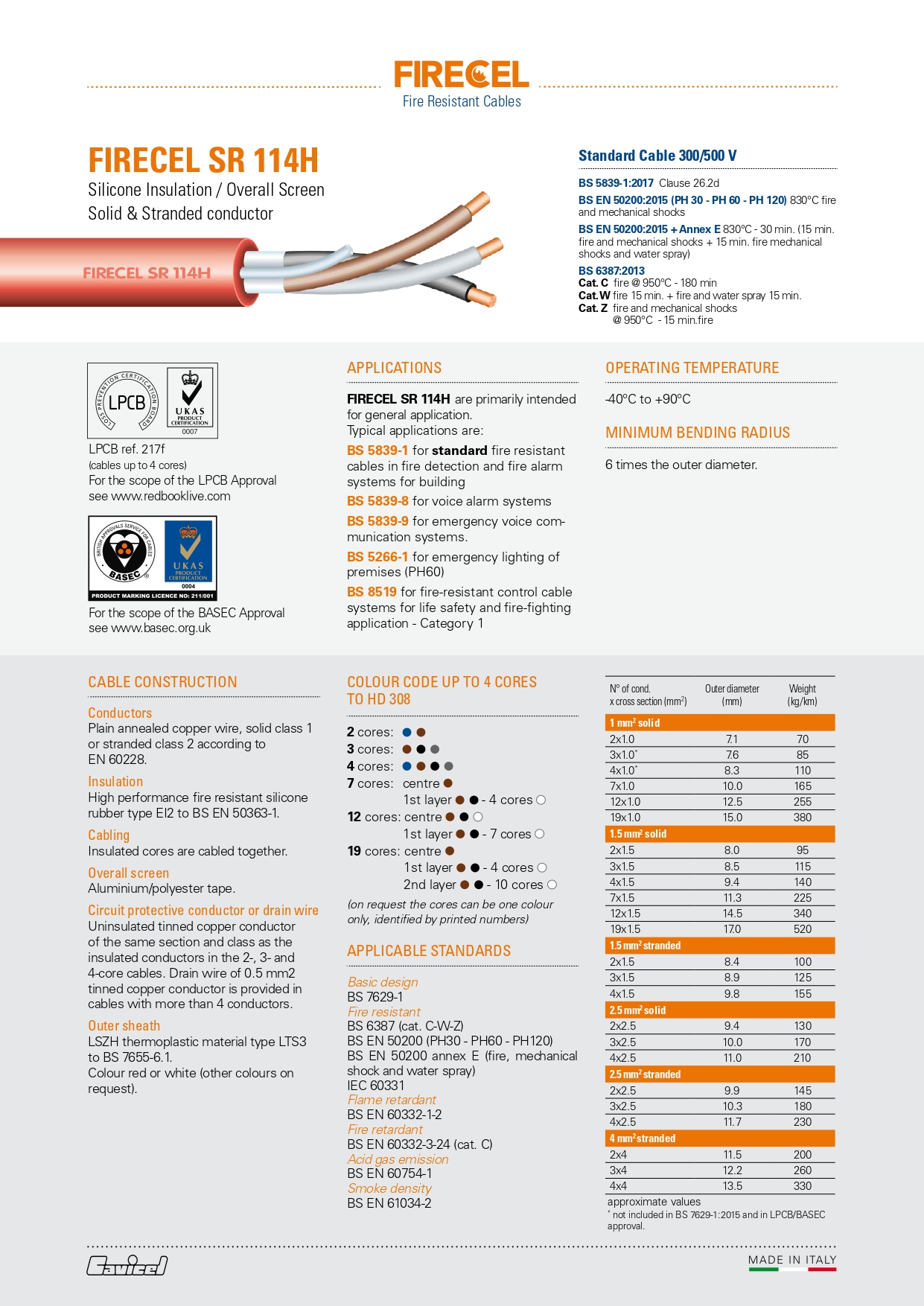

CABLE CONSTRUCTION
Conductors
Plain annealed copper wire, solid class 1 or stranded class 2 according to EN 60228.
Insulation
High-performance fire-resistant silicone rubber type EI2 to BS EN 50363-1.
Cabling
Insulated cores are cabled together.
Overall screen
Aluminium/polyester tape.
Drain wire
Uninsulated tinned copper conductors of the same section and class as the insulated conductors in the 2,3 and 4 core cables.
Drain wire of 0.5 mm2 tinned copper conductor is provided in cables with more than 4 conductors
Outer sheath
LSZH thermoplastic material type LTS3 according to BS 7655.
Colour red or white (other colours on request)
OPERATING TEMPERATURE
-40DegC to +90DegC

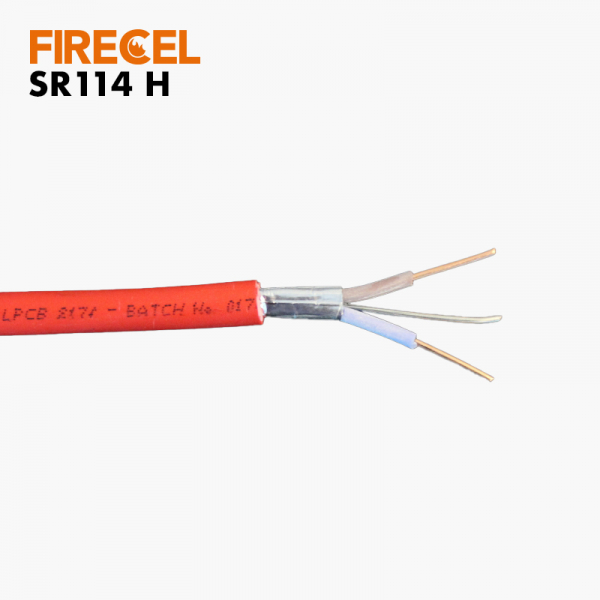

FIRECEL SR 114H are primarily intended for general application.
Typical applications are:
. BS 5839-1 for standard fire resistant cables in fire detection and fire alarm systems for building
. BS 5839-8 for voice alarm systems
. BS 5839-9 for emergency voice communication systems.
. BS 5266-1 for emergency lighting of premises (PH60)
. BS 8519 for fire-resistant control cable systems for life safety and fire-fighting application - Category 1
Weight :
Dimetion :
Cable in one drum:
Pallet weight :
Total net weight in cluding both :
