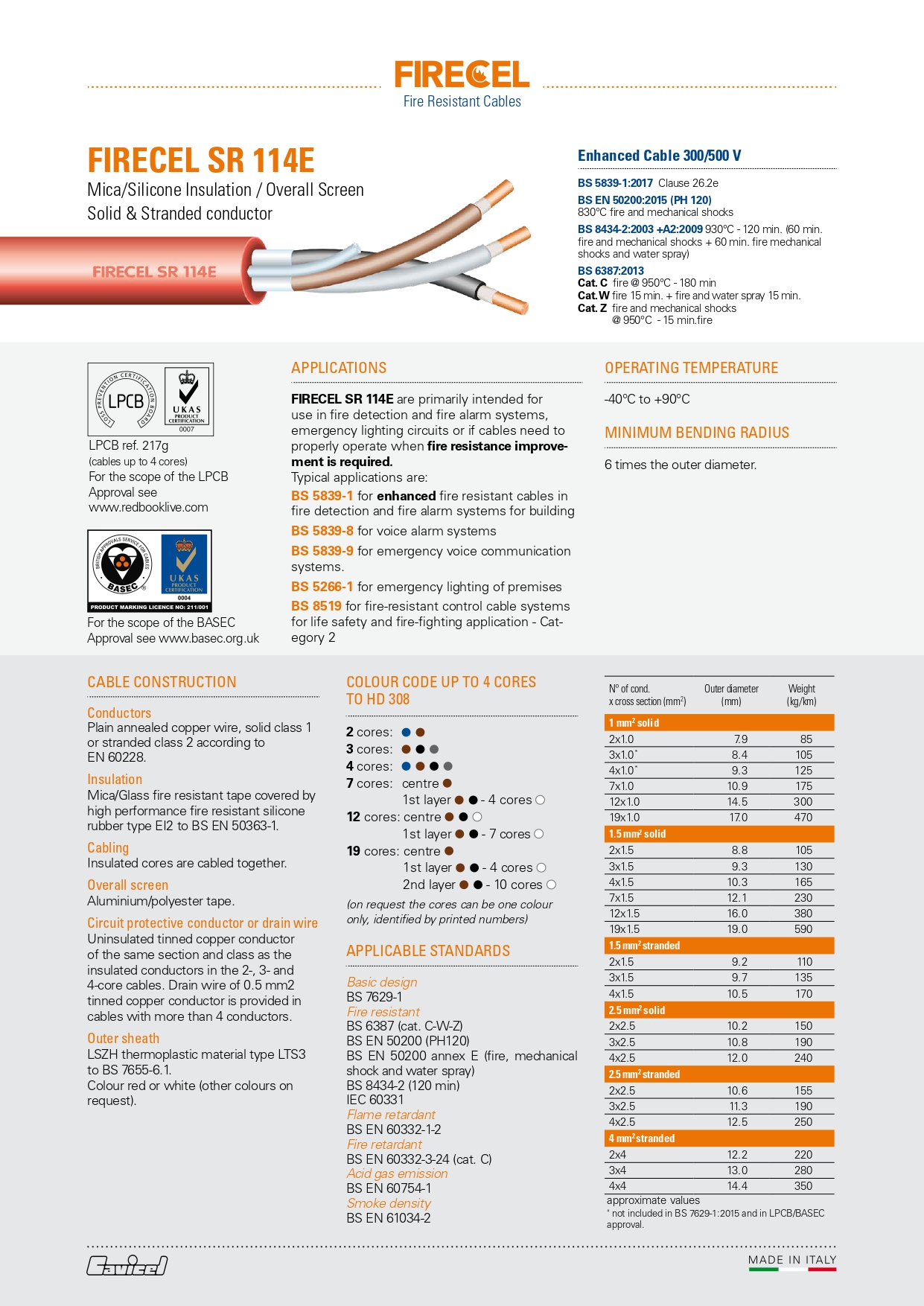

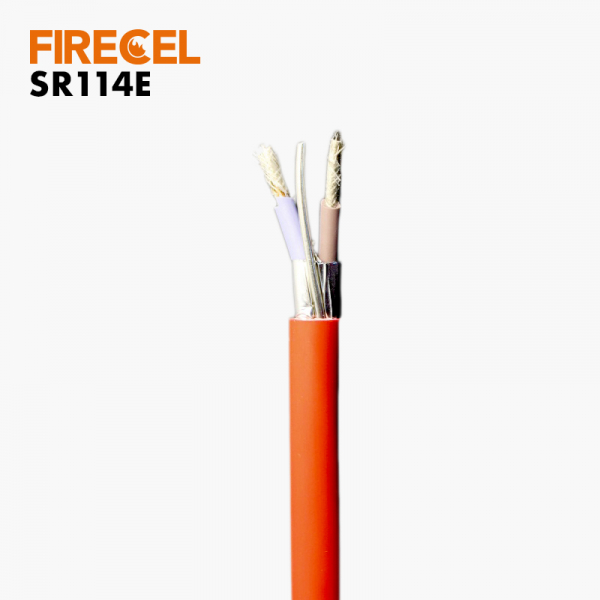

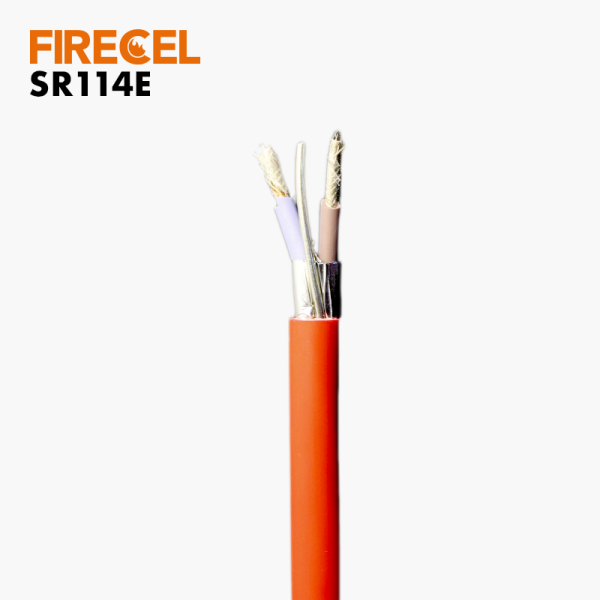

Firecel SR114E Red - Enhanced Fire Alarm Cable - LPCB and BASEC Approved

 CABLE CONSTRUCTION

 Conductors

 Plain annealed copper wire, solid class 1 or stranded class 2 according to EN 60228.

 Insulation

 Mica/Glass fire-resistant tape covered by high-performance fire-resistant silicone rubber type El2 to BS EN 50363-1.

 Cabling

 Insulated cores are cabled together.

 Overall screen

 Aluminium/polyester tape.

 Drain wire

 Uninsulated tinned copper conductors of the same section and class as the insulated conductors in the 2,3 and 4-core cables.

 Drain wire of 0.5 mm2 tinned copper conductor is provided in cables with more than 4 conductors.

 Outer sheath

 LSZH thermoplastic material type LTS3  according to BS 7655.

 Colour red or white (other colours on request)

 OPERATING TEMPERATURE
 -40DegC to +90DegC

 FIRECEL SR 114E are primarily intended for use in fire detection and fire alarm systems, emergency lighting circuits or if cables need to property operate when fire resistance   improve­ment is required.

 Typical applications are:

 . BS 5839-1 for enhanced fire resistant cables in fire detection and fire alaram systems for building

 . BS 5839-8 for voice alarm systems

 . BS 5839-9 for emergency voice communication systems

 . BS 5266-1 for emergency lighting of premises

 . BS 8519 for fire-resistant control cable systems for life safety and fire-fighting application - Cat­egory 2
