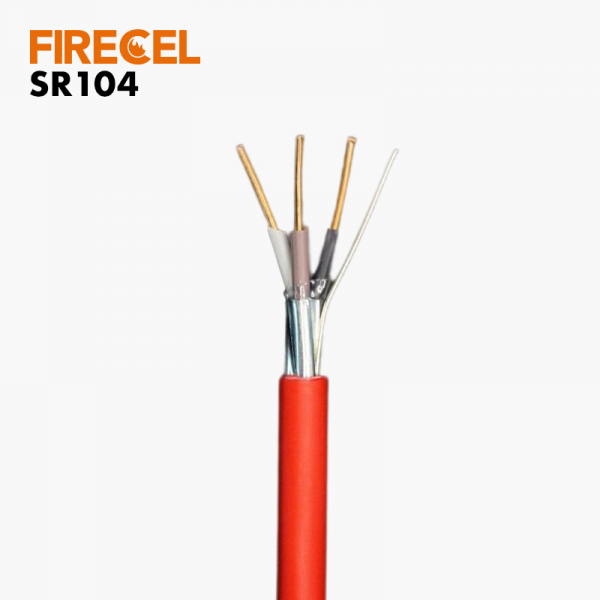

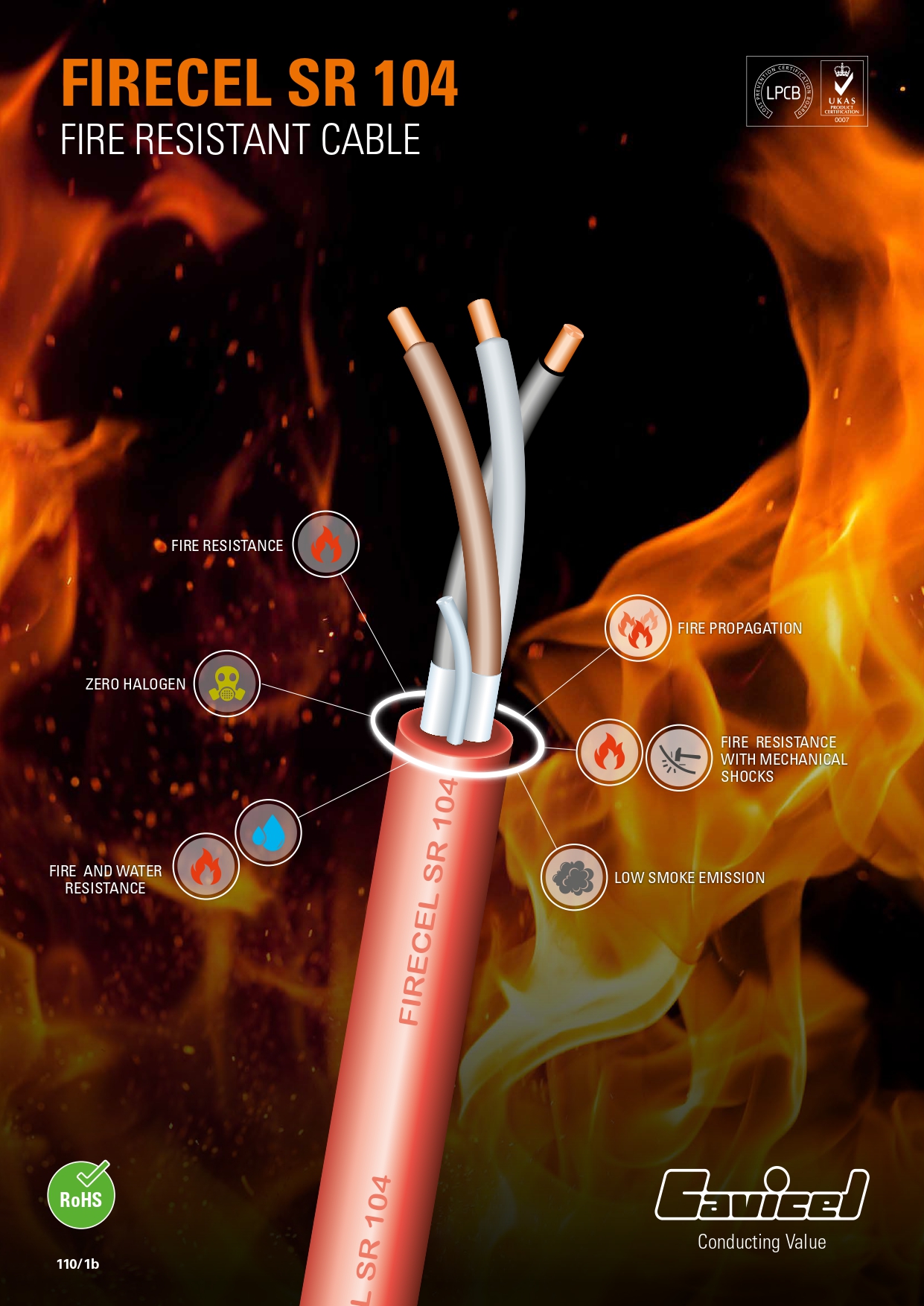

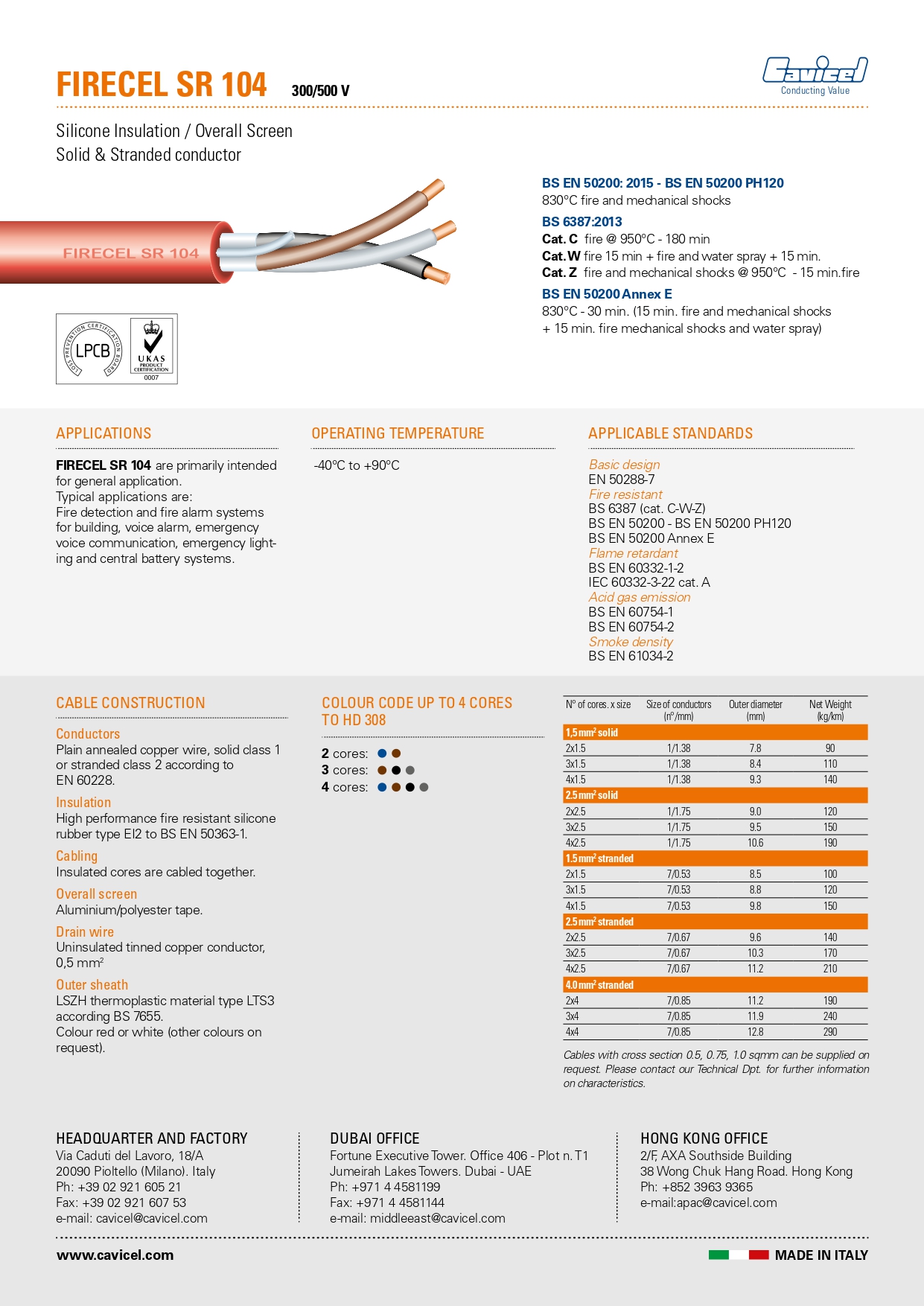

Firecel SR104 Red - Fire Alarm Cable - LPCB Approved

 CABLE CONSTRUCTION

 Conductors

 Plain annealed copper wire, solid class 1 or stranded class 2 according to EN 60228.

 Insulation

 High performance fire resistant silicone rubber type EI2 to BS EN 50363-1.

 Cabling

 Insulated cores are cabled together.

 Overall screen

 Aluminium/polyester tape.

 Drain wire

 Uninsulated tinned copper conductor 0.5 mm2.

 Outer sheath

 LSZH thermoplastic material type LTS3  according BS 7655.
 Colour red or white (other colours on request)

 OPERATING TEMPERATURE
 -40°C to +90°C

 FIRECEL SR 104 are primarily intended for general application.

 Typical applications are:

 Fire detection and fire alarm systems for building, voice alarm, emergency voice communication, emergency lighting and central battery systems.

 Weight :

 Dimension :

 Cable in one drum:

 Pallet weight :

 Total net weight including both :
