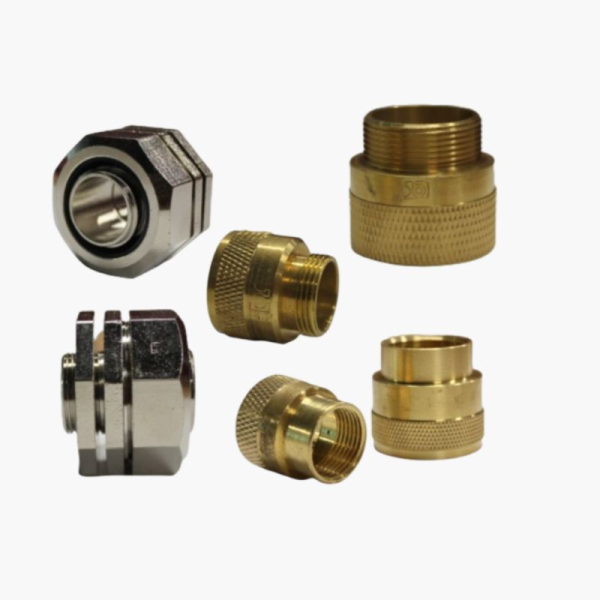

Cot Brass Flexible Adaptors

 MATERIAL

 -Pre Hot-Dipped Galv. (Hot-Dipped Galv. Steel Tape)

 -IP67 Rating

 -Highly Flexible

 -Tensile Resistance

 -Water Resistance

 Steps to assemble the WP type Adaptor to the IP67 Flexible Conduit:

 1.  Put the Locking Ring (with insulation rubber ring inside) through the IP67 Flexible Conduit at one end.

 2.  Put the Inner Screw into the end of IP67 Flexible Conduit.

 3.  Put the Adaptor Body to the IP67 Flexible Conduit fixed with Inner Screw.

 4.  Screw both the Locking Ring and Adaptor Body together tightly with two spanners.

 Steps to assemble the WRHD type Adaptor to the IP67 Flexible Conduit:

 1.  Put the Locking Ring (with a bigger insulation rubber ring inside) through the IP67 Flexible Conduit at one end.

 2.  Put the Inner Screw into the end of IP67 Flexible Conduit.

 3.  Put the Adaptor Body (with a smaller insulation rubber ring inside) into the IP67 Flexible Conduit fixed with Inner Screw.

 4.  Screw both the Locking Ring and Adaptor Body together tightly with two spanners.

 * WP & WRHD IP 67 Adaptors are made of Brass with Nickel Plated.

 * Option:

 1.  Locknut for male adaptor.

 2.  Male Bush (Short) for WP type adaptor.

 3.  Male Bush (Long or Short) for WRHD type adaptor.

 4.  LSFH coated.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
