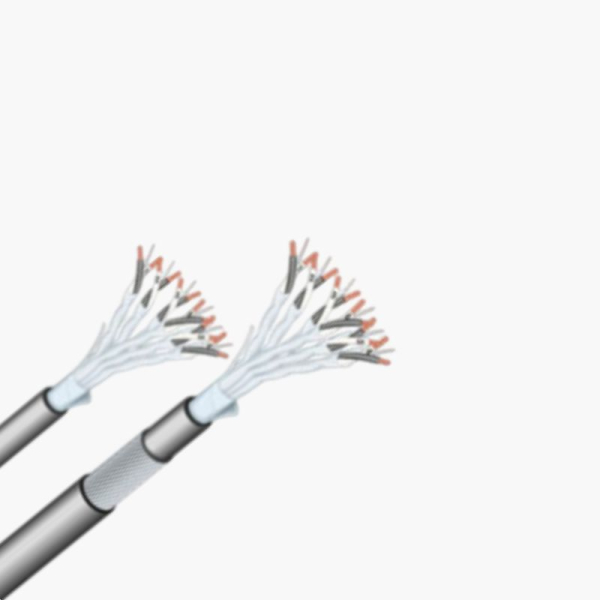

Cavicel Instrumentation Cables, 1.5 mm, R-mXLPE/OS/LSZH/SWA/LSZH, Fire Resistant, Armoured

 CABLE CONSTRUCTION

 Conductors

 Plain annealed copper wire, solid class 1 or stranded class 2 according to EN 60228.

 Insulation

 High performance fire resistant silicone rubber type EI2 to BS EN 50363-1.

 Cabling

 insulated cores are cabled together.

 Overall screen

 Aluminium/polyester tape.

 Drain wire

 Uninsulated tinned copper conductor, 0,5 mm2

 Outer sheath

 LSZH thermoplastic material type LTS3  according BS 7655.
 Colour red or white (other colours on request)

 Colour code upto 4 Cores to HD

 2 cores:

 3 cores:

 4 cores:

 OPERATING TEMPERATURE
 -40°C to +90°C

 FIRECEL SR 104 are primarily intended for general application.

 Typical applications are:

 Fire detection and fire alarm systems for building, voice alarm, emergency voice communication, emergency lighting and central battery systems.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :

 Waranty details

 yesr with details to be provided

 Replacement not allowed
