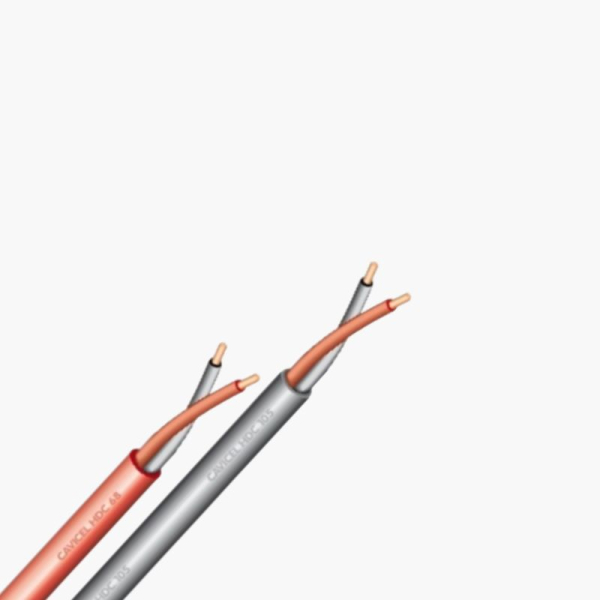

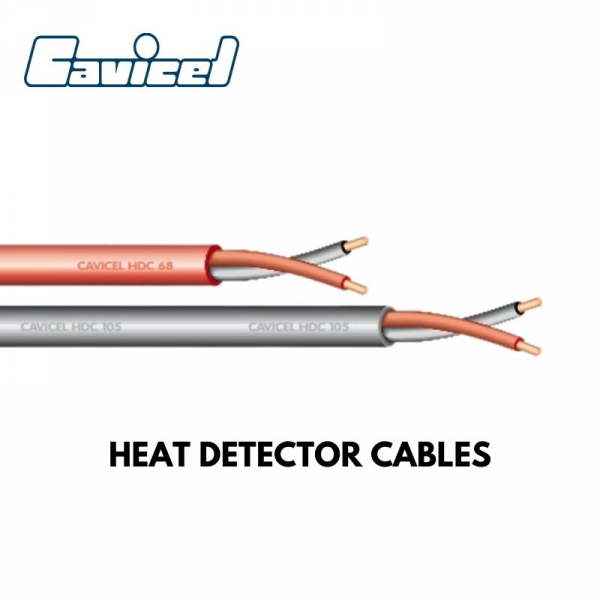

Cavicel 105°C Linear Heat Detector Cables (HDC), Black, 2C X 0.95 Sqmm

0 Review

AED 8.30 AED 9.45

-12%

Price inclusive of all taxes

Availability: In stock

SKU:

KAVHDC105BLK

UOM: METERS

MINIMUM ORDER: 1000 METERS

Characteristics

Conductors: Copper-covered steel wire, 0.95 mm
Insulation: Special thermosensitive polymer, red and black.
Cabling: Twisted insulated conductors
Sheath: Extruded thermoplastic sheath
Voltage Rating: 100 V DC
Conductor Resistance: 290 Ω/km @ 20 °C

Technical Data

Alarm temperature: 105 ±5 °C
Outer diameter: 4.5 mm
Weight: 25 kg/Km
Max. ambient temperature: 60 °C
Outer sheath color: Black
Water and oil sheath resistance: Good

DATASHEET

Hurry Up! Sold: 0/2500 products in stock.

Cavicel 105°C Linear Heat Detector Cables (HDC), Black, 2C X 0.95 Sqmm is available to buy in increments of 1000

CAVICEL

Details

HDC Linear Heat Detector Cables are reliable and economical tools for monitoring abnormal heat increase which often is a preliminary stage of a full fire event.

The HDC sensor cable detects heat anywhere along its length: it is a continuous heat detector, unlike the
standard point detector. The HDC sensor cable is composed of two copper-covered steel wires, individually insulated with a thermosensitive polymer. At the rated temperature the polymer insulation melts, thus permitting the conductors to short-circuit and generate an alarm signal.

Applications
